PA Anatomy: Chest: Case 3 |
 |
|||
 |
|
|
|
|
 |
||||||||||||
 |
 |
 |
 |
 |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
|||||
|
|
|
|
|
|
|
|
|
In order to determine what valves have been replaced in our patient, we need to review the orientation of the heart chambers in space, which is best shown on cross-sectional imaging |
||
|
|
|
 |
||||
|
|
|
|
|

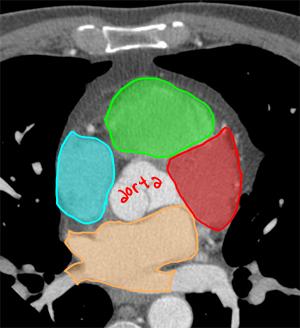

This is a single section from the same study on the left, with the four cardiac chambers labeled. The right ventricle is green, the right atrium is blue, the left atrium is orange and the left ventricle is red. |
||||
What type of study is this, and what are the relevant technical parameters to note? |
||||
|
|
|
|
|
 |
||||
 |
||||
|
|
|
|
|
 |
||
|
|
|
